Pit Parking System
( Two Level Independent Parking ) - URW_P

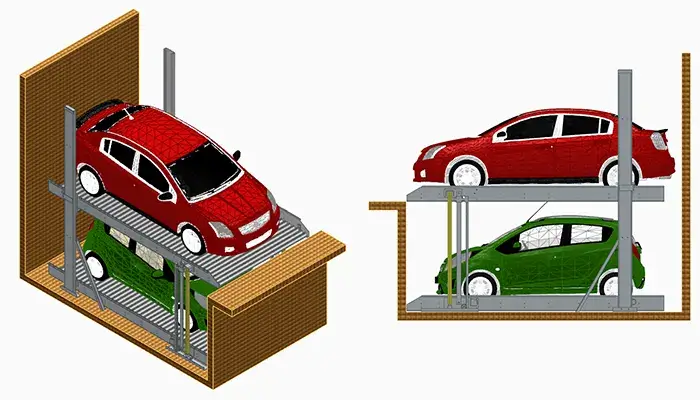

This parking solution features an independent two-level configuration, offering space for two vehicles—one on the lower platform (within a pit) and the other on the upper platform. When retrieving the upper vehicle, the system lowers both platforms simultaneously, placing the lower car into the pit while bringing the upper car down to ground level for easy access.To access the lower vehicle, the system lifts both platforms together, raising the lower car to ground level for removal.
General Details
| Model | URW_P |
| No. Of Parking Slot | 2 Car. |
| Operation | Independent. |
| Working System | Hydraulic driven with heavy duty chain. |
| Load | 2100 kg to 2300 kg. |
| Material Used | M.S. with powder coating & G.I. with hot dip galvanized (Anti corrosion coatings). |
| Power Source | Main- AC 415V, 3 PH, 50HZ. |
| Operated With | Push Button with safety electrical control panel key locking system. |
| Travel Speed | 50 to 55 sec. |
| Application | Commercial, Residential, Malls, Hotels, Hospitals etc. |
Highlights
- Independent Parking.
- Single unit for “Two Cars”.
- Good operational & functional safety.
- Low maintenance cost.
- Carrying capacity of platform 2100 kg to 2300 Kg.
- Cost saving because Two Car Park with single parking platform system.
