Tower Parking System
( Multi-Level Automated Parking ) – URW_T

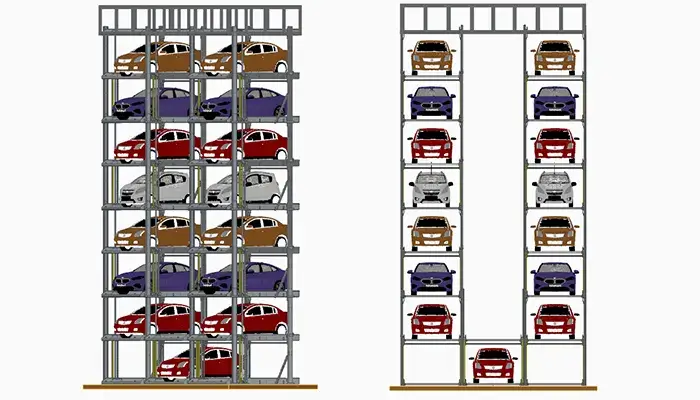

This is a fully automated vertical tower parking system designed to accommodate multiple vehicles in a compact footprint by utilizing vertical space. Vehicles are parked and retrieved automatically through a central lift and rotating pallet system, eliminating the need for drivers to enter the tower structure. The system is ideal for urban locations with space constraints and can be constructed above ground, attached to buildings, or as a standalone structure.
General Details
| Model | URW_T |
| No. Of Parking Slot | 10 to 60 Cars (as per height & design). |
| Operation | Independent (Fully Automatic Vertical Retrieval). |
| Working System | Motor-driven with steel rope or chain & lifting frame system. |
| Load | 2100 kg to 2300 kg. |
| Material Used | M.S. with powder coating & G.I. with hot dip galvanized (Anti corrosion coatings). |
| Power Source. | Main- AC 415V, 3 PH, 50HZ. |
| Operated With | PLC controlled system with HMI/Touchscreen, RFID, App-based interface. |
| Travel Speed | Vertical: 30–60 m/min (varies with model). |
| Application | Commercial, Corporate Offices, Residential Towers, Hotels, Metro Stations etc. |
Highlights
- Maximum space utilization through vertical stacking.
- Compact footprint ideal for high-density urban areas.
- Fully automatic and independent parking system.
- Fast retrieval time with efficient car elevator mechanism.
- Suitable for cars up to 2500kg in weight.
- Low noise, low energy consumption, and minimal maintenance.
- Ideal for commercial complexes, hotels, offices and metro stations.
