Stack Parking System
( Two Level Independent Parking ) - URW_S

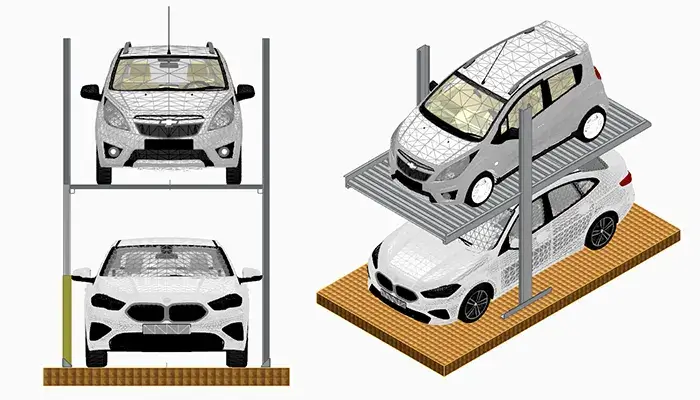

This is a two-level dependent stack parking system designed to accommodate two vehicles— one parked at ground level and the other on an elevated platform above it. To access the upper- level vehicle, the lower car must be moved out first. This system is versatile and can be set up both indoors and outdoors.
General Details
| Model | URW_S |
| No. Of Parking Slot | 2 Car. |
| Operation | Dependent. |
| Working System | Hydraulic driven with heavy duty chain. |
| Load | 2100 kg to 2300 kg. |
| Material Used | M.S. with powder coating & G.I. with hot dip galvanized (Anti corrosion coatings). |
| Power Source | Main- AC 415V, 3 PH, 50HZ. |
| Operated With | Push Button with safety electrical control panel key locking system. |
| Travel Speed | 50 to 55 sec. |
| Application | Commercial, Residential, Malls, Hotels, Hospitals etc. |
Highlights
- Dependent Parking.
- Single unit for “Two Cars”.
- Good operational & functional safety.
- Low maintenance cost.
- Carrying capacity of platform 2100 kg to 2300 Kg.
- Cost saving because Two Car Park with single parking platform system.
