Pit Puzzle Parking System
( Three Level Semi-Automated Parking ) – URW_P

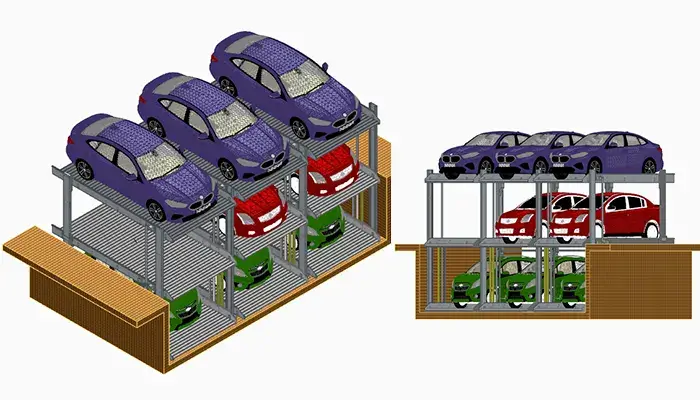

This is a semi-automated puzzle-type parking system designed for underground (pit-based) installation. It provides three levels of vertical parking- one is below ground , second one is at ground level and third one is at above the ground level—enabling the parking of multiple cars in a compact footprint. The system moves platforms vertically and horizontally to retrieve the desired car without requiring the removal of others. Ideal for basements or where surface space is limited, this system maximizes parking efficiency and can be integrated with existing building infrastructure.
General Details
| Model | URW_P |
| No. Of Parking Slot | 5 to 50 Cars (as per configuration). |
| Operation | Independent (Horizontal & Vertical Movement). |
| Working System | Electro-mechanical with motor & chain drive. |
| Load | 2100 kg to 2300 kg. |
| Material Used | M.S. with powder coating & G.I. with hot dip galvanized (Anti corrosion coatings). |
| Power Source | Main- AC 415V, 3 PH, 50HZ. |
| Operated With | PLC controlled system with touch panel & RFID / keypad / app options. |
| Travel Speed | 3m/ min. (varies by level). |
| Application | Commercial, Residential Complexes, Offices, Hotels, Hospitals etc. |
Highlights
- Efficient use of vertical and horizontal space.
- Multiple cars parked in a compact footprint.
- Independent Parking – no need to move other cars.
- Ideal solution for residential, commercial, and office spaces.
- Low maintenance with high durability components.
